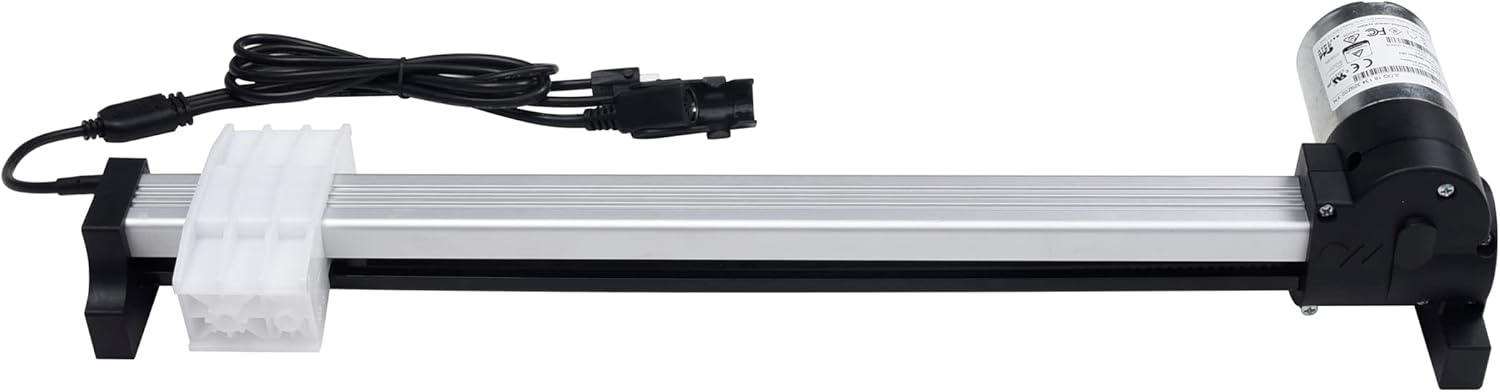

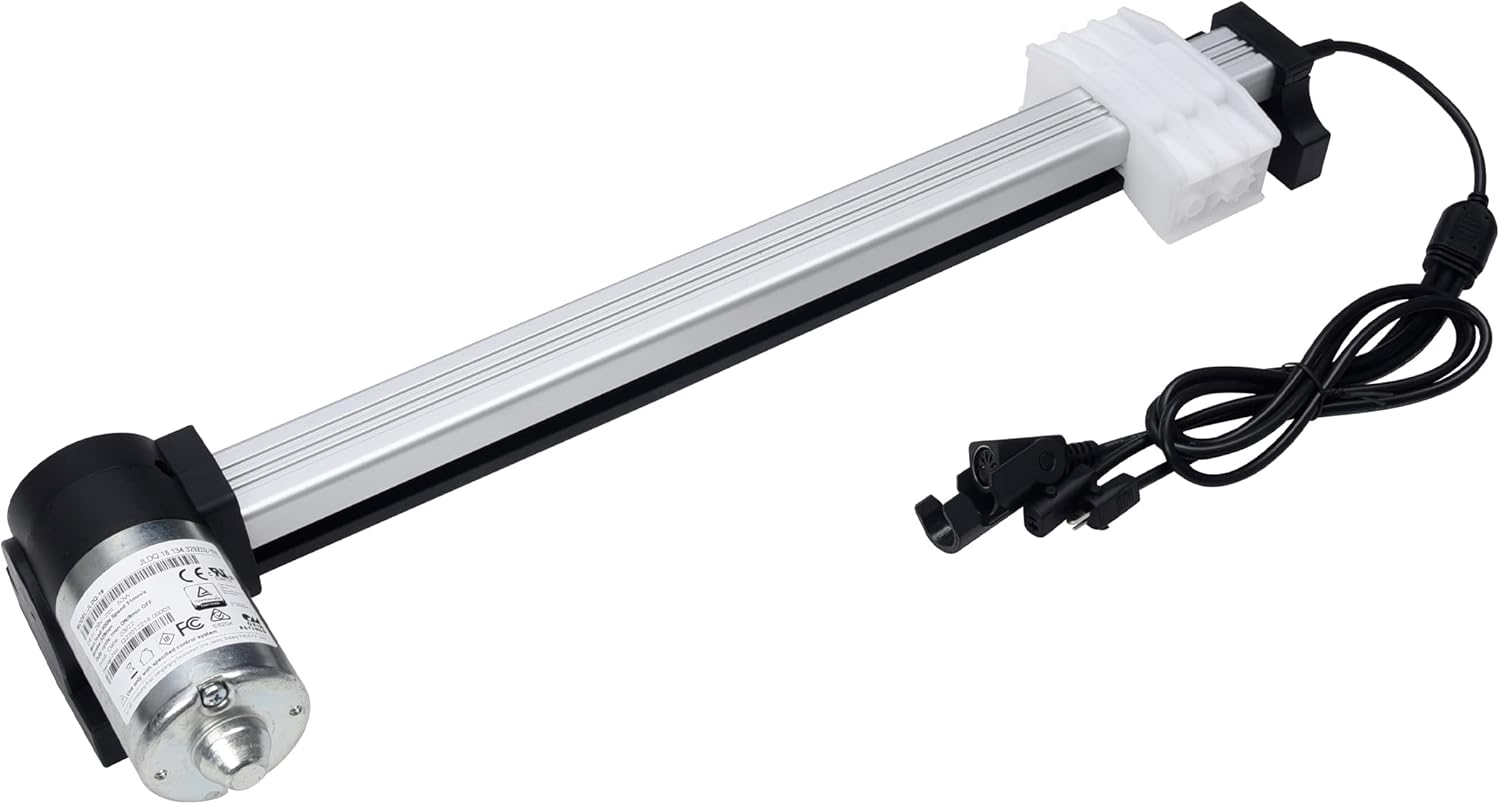

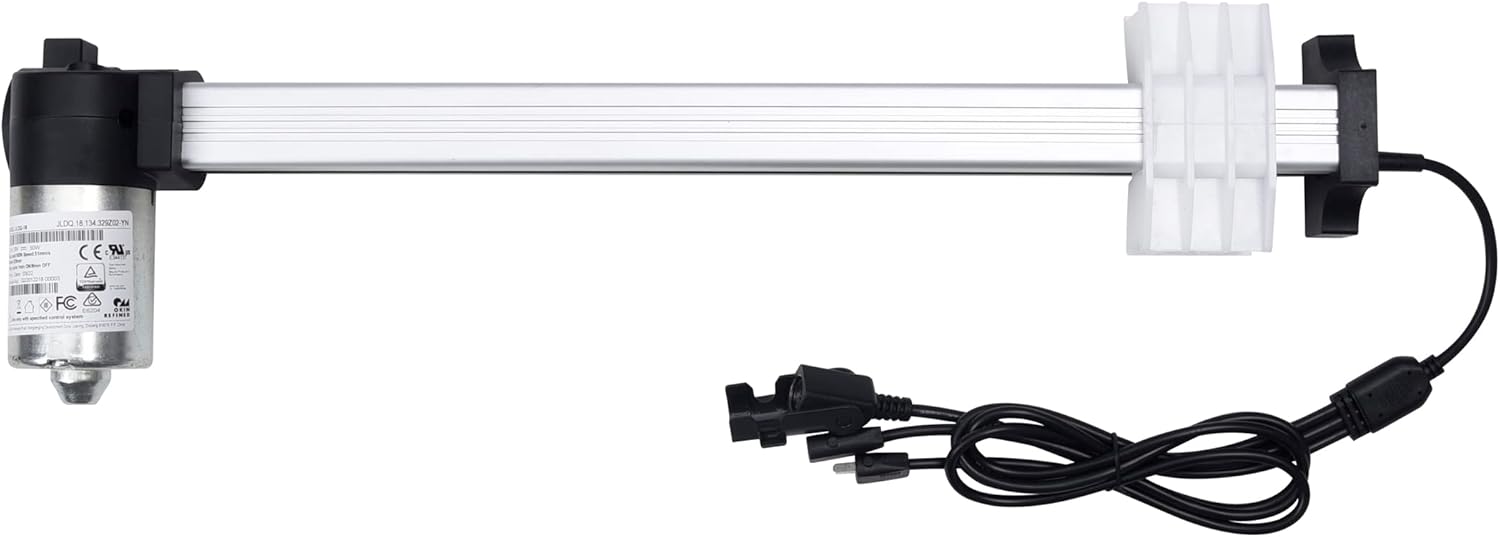

Power Recliner Motor Replacement Actuator Part L359615
Sale price
$20.90
Regular price $99.99
Skip to product information
Power Recliner Motor Replacement Actuator Part L359615
Sale price
$20.90
Regular price $99.99
Shipping calculated at checkout.

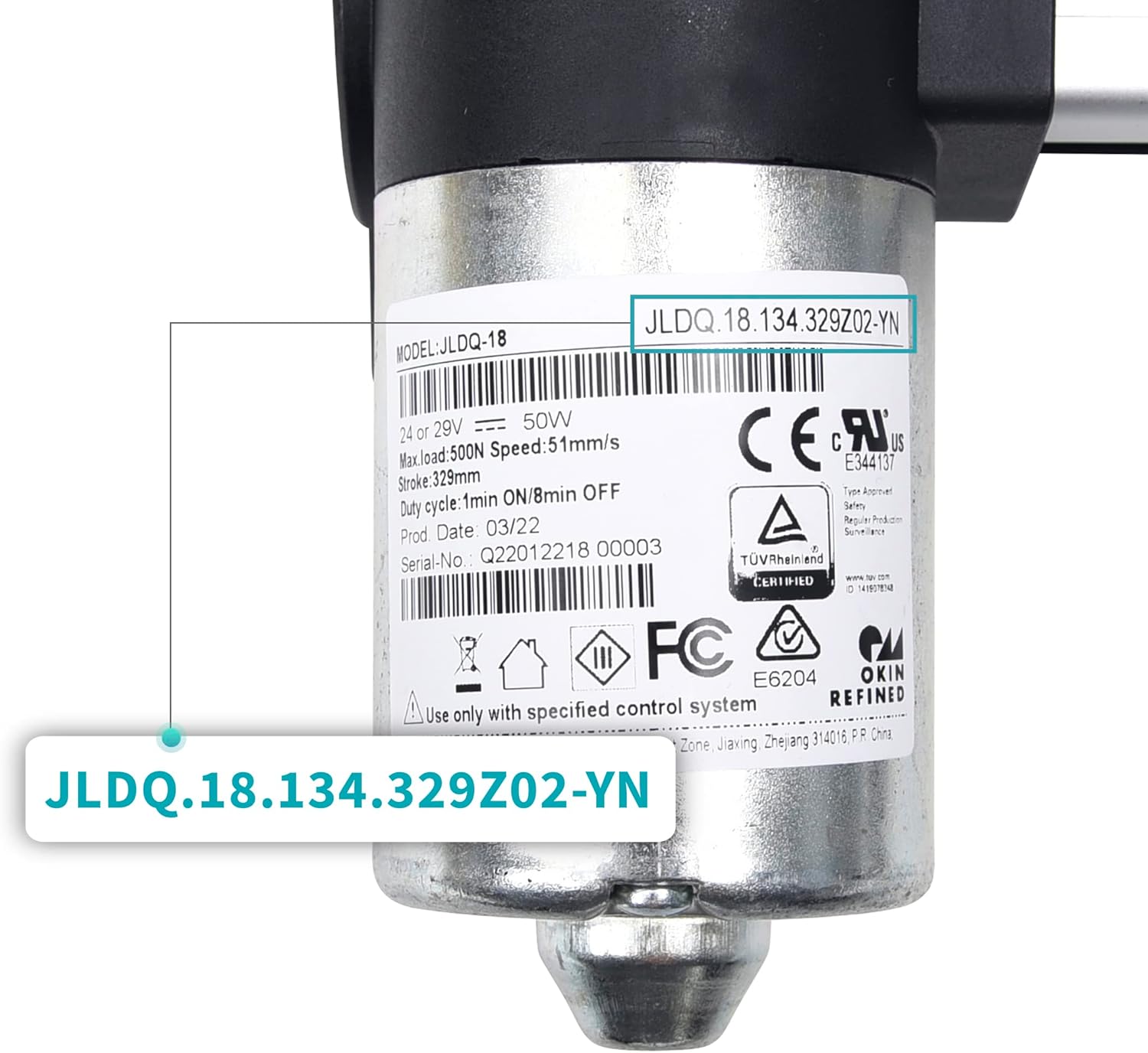

- APPLICATION: Different actuator/motors are not compatible with frame, the frame has strict demand for actuator/motors' minimum install dimension, stroke and plugs. The motor is suggested to replace OKIN model JLDQ.18.134.329Z02-YN, and also JLDQ.18.134.329Z02/Z03/Z05/Z06/Z08, JLDQ.18.134.329D/F, a little difference but not affect use. Please check your motor brand and model first.

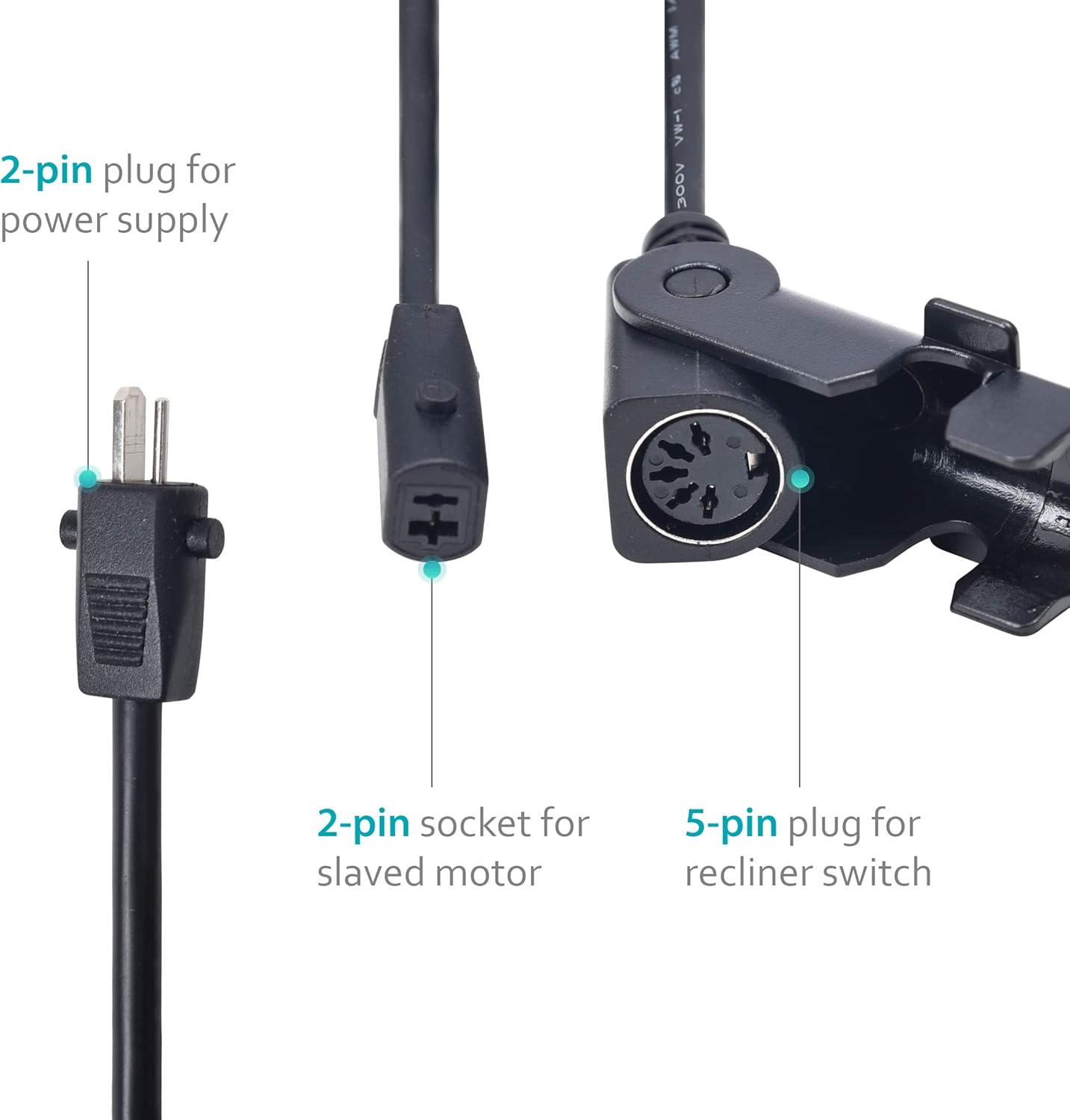

- DESCRIPTION: The actuator motor set is made of 1 motor and 3 connectors, connector with 5-pin round plug and clip is for switch hand control, connector with 2-pin square plug is for power supply, connector with 2-pin socket is for slaved motor.

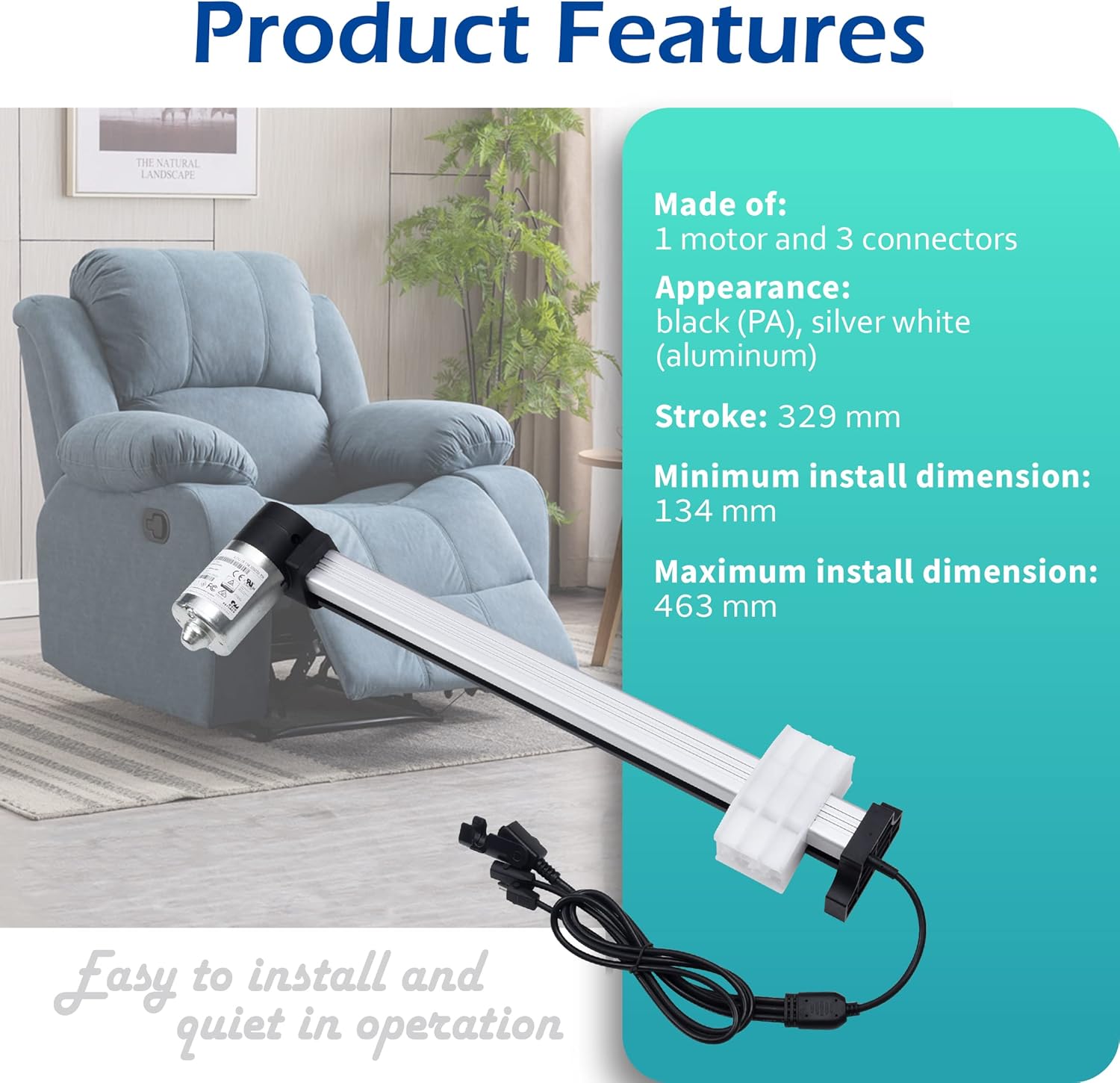

- SPECIFICATION: Appearance: black (PA), silver white (aluminum); Stroke: 329 mm ; Minimum Inst Size (shrink): 134 mm; Maximum Inst Size: 463 mm; Load: push force: 500 N pull force: 500 N.
- NOTE: Please troubleshoot the switch and power supply first, then check the motor and plug, see if it matches your recliner motor.
- PACKAGE: 1* Okin refined motor. Easy to install.
